产品中心 — 复合绝缘子·避雷器·熔断器·开关

复合悬式棒形绝缘子Composite Suspension Rod Insulators

FXBW 系列 · Composite long rod insulators

适用于线路猫头塔、耐张塔、牵引线塔及换流站阀厅等 AC/DC 场合。采用高温硫化硅橡胶伞裙与 ECR 玻璃纤维引拔棒，整体注塑一次成型，金具压接连接，具有耐污闪、免清扫、体积小、重量轻、耐冲击等特点，正常使用环境下 15 年运行经验。 For AC/DC applications including cat-head towers, tension towers, messenger towers and converter-station valve halls. HTV silicone rubber housing with ECR fiberglass rod, integral injection molding and crimped end fittings. Pollution-flashover resistant, maintenance-free, light and compact, with 15 years of field experience.

10–500 kVFXBW4-10/70 ~ FXBW4-500/160均压环 Grading rings防风偏 / 耐张型 Wind-sway / Tension types

复合棒形支柱绝缘子Composite Rod Post Insulators

FZSW 系列 · Composite post insulators

适用于电站设施，具有良好的耐水性、耐化学腐蚀性和耐电痕化性能，有极强的抗弯强度和抗冲击能力，安装方便，顶端与底端安装尺寸可与相应瓷质支柱绝缘子互换。 For substation installations. Excellent water resistance, chemical corrosion resistance and tracking resistance, with high bending strength and impact resistance. Top and bottom mounting dimensions are interchangeable with equivalent porcelain post insulators.

12.5–126 kVFZSW-12.5 ~ FZSW-126/10高抗弯 High bending strength

复合横担绝缘子Composite Cross-arm Insulators

FSW3 系列 · Cross-arm insulators

本产品适用于城市电网改造，能有效利用城市狭窄的走廊面积升压送电，可降低杆杆塔高度。其抗弯曲强度高，可防止套横担在线路中的初弯事故，而且运行性能好。 Ideal for urban grid upgrades: makes effective use of narrow corridors, boosts voltage transmission and reduces tower height. High bending strength prevents cross-arm bending failures with excellent field performance.

10–220 kVFSW3-10/2.5 ~ FSW3-100/10城网改造 Urban grid upgrade

复合针式绝缘子Composite Pin Insulators

FPQ / FPQW 系列 · Pin insulators

用于高压架空线路，具有良好的耐水性、耐老化性、抗电痕和电蚀耐电痕性能，兼具高的抗弯强度、抗冲击性能、防雨性能和抗湿性，重量轻、成本低，安装方便且安装尺寸与瓷针式绝缘子通用。 For high-voltage overhead lines. Water-resistant, aging-resistant, tracking and erosion proof, with high bending strength, impact resistance and weather performance. Light and cost-effective; mounting dimensions interchangeable with porcelain pin insulators.

10–24 kVFPQ-10/4T20 ~ FPQW-24/5T22轻量化 Lightweight

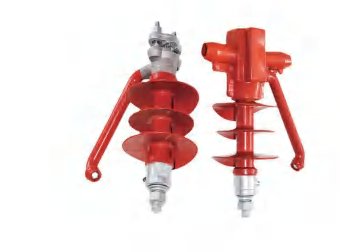

防雷支柱绝缘子Lightning Protection Support Insulators

FPL / FPLG 系列 · Lightning-proof post insulators

本产品用于架空线路的绝缘支持，且具有防止雷电导线击穿导致跳闸、减少停电事故的保护功能。10kV 复合式防雷支柱绝缘子内装有带放电间隙的氧化锌避雷器，不需另外安装线路避雷器，减少了安装工序，节省了设备成本。 Insulation support for overhead lines with built-in protection against lightning-induced flashovers and outages. The 10kV composite type integrates a ZnO arrester with spark gap — no separate line arrester required, saving installation steps and cost.

10–20 kVFPL-12/5 穿刺 / 非穿刺 Piercing & non-piercing防雷击断线 Anti-lightning

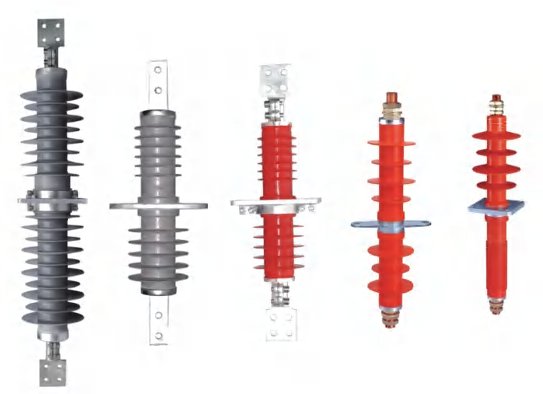

复合铁道绝缘子Composite Railway Insulators

FQJ 系列 · Railway insulators

适用于各条铁路的电气化铁路隧道，该产品能防止污闪事故、减少清扫维护。由于其尺寸小、隧道净空间距小，是其他产品不可替代的。通过 4KN 拉荷负荷试验，弯曲破坏负荷不小于 400N。 For electrified railway tunnels. Prevents pollution flashovers and reduces cleaning maintenance. Its compact size fits tight tunnel clearances where no substitute exists. Passed 4kN tension load test; bending failure load ≥400N.

25 kVFQJ-25 系列耐污闪 Anti-pollution flashover

复合干式穿墙套管Composite Dry-Type Wall Bushings

FCWB 系列 · Wall bushings

复合干式穿墙套管是更新型的穿墙套管，其中绝缘采用新型绝缘材料，增加耐污性和防爆性能，复合干式穿墙套管无油化、小型化的趋势，是新型电力设备间与配电室内输电引接的更新换代产品。 A new-generation wall bushing using advanced insulation material with improved pollution and explosion performance. Oil-free and compact — the upgrade replacing conventional wall bushings in power rooms and distribution cabinets.

10–36 kV500A–2000ACWB / CWL 型无油化 Oil-free

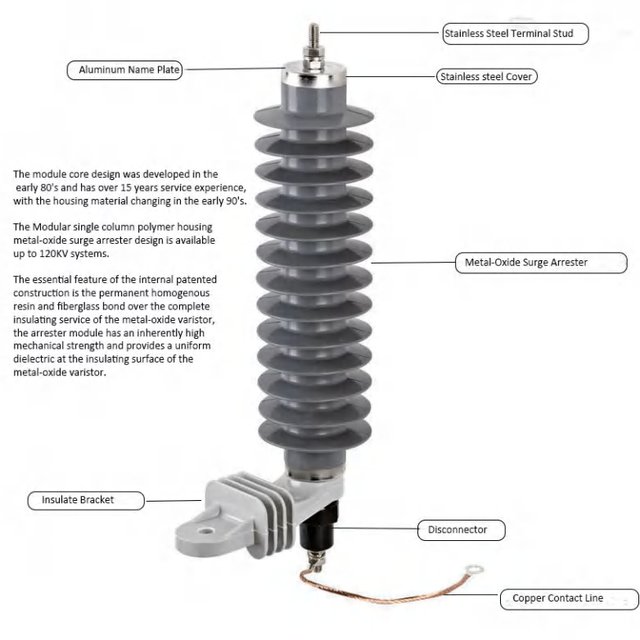

金属氧化物避雷器Metal-Oxide Surge Arresters

YH / Y5WS / YH5W 系列 · MOSA

核心元件采用金属氧化锌电阻片，具有优越的非线性伏-安特性，保护特性优秀。产品涵盖电站型、线路型、电机型、低压型及出口型避雷器，0.22–220kV 全覆盖；单柱式聚硅氧烷外壳，内含专利可靠的绝缘设计。另配跌落式避雷器与热熔/热爆式脱离器。 ZnO varistor core with superior non-linear V-I characteristics and excellent protection. Full range of station, line, motor, low-voltage and export types from 0.22–220kV. Single-column silicone housing with patented reliable insulation design. Drop-out arresters and heat-melt/explosion disconnectors available.

0.22–220 kV出口型 3–39 kV Export带脱离器 With disconnector跌落式 Drop-out type

跌落式熔断器Drop-out Fuse Cutouts

RW / HPRW / PRWG 系列 · Fuse cutouts

户外高压保护设备，连接于配电变压器与配电线路的进线端，用于保护变压器或线路免受短路及过载电流冲击。熔丝管采用环氧玻璃布管/绝缘纸复合管，开断容量大，熔丝熔断后熔丝管自动跌落形成明显断开点，便于检修维护。配 K/T 型熔丝。 Outdoor HV protection device connected at the incoming feeder of distribution transformers and lines, protecting against short-circuit and overload. Epoxy-fiberglass fuse tube with high interrupting capacity; after the fuse melts, the tube drops to form a visible isolation point for easy maintenance. Supplied with K/T type fuse links.

12–35 kV100–200 A开断电流 6300–12500 AK/T 熔丝 Fuse links

户外高压隔离开关Outdoor HV Disconnecting Switches

GW9 / GW10 / GW4 / HGW9 / JN15 系列 · Disconnect switches

单相交流 50Hz 高压开关设备，用于 10–35kV 电力系统中在有电压无负载的情况下分断与关合电源。GW9-12 型带隔离板提高安全性；GW4 系列双柱式结构，与避雷器配合使用更为适用。绝缘材料可选环氧树脂或陶瓷。 Single-phase AC 50Hz switchgear for 10–35kV systems, making or breaking power supply under voltage but no-load conditions. GW9-12 features an isolation plate for safety; GW4 double-column type works well combined with arresters. Epoxy resin or porcelain insulation available.

0.5–40.5 kV200–1250 A单相 / 双柱式 Single / double-column

户外高压真空断路器（重合器、分段器）Outdoor HV Vacuum Breakers (Reclosers, Sectionalizers)

ZW8-12 系列 · Vacuum circuit breakers

用于交流 50Hz、电压 10–12kV 的三相电力系统，作为分断、关合负荷电流之用，具备过载及短路电路双重保护。额定电流 630A，可配套 sansung 液电流双保护仪器和单侧电源隔离开关组合，是户外柱上真空断路器的更新换代产品。 For three-phase AC 50Hz, 10–12kV systems, breaking and closing load currents with dual overload and short-circuit protection. Rated 630A; combinable with protective instruments and isolation switches. The new-generation pole-mounted vacuum breaker.

12 kV630 AZW8-12G / G30 / G30PC柱上安装 Pole-mounted

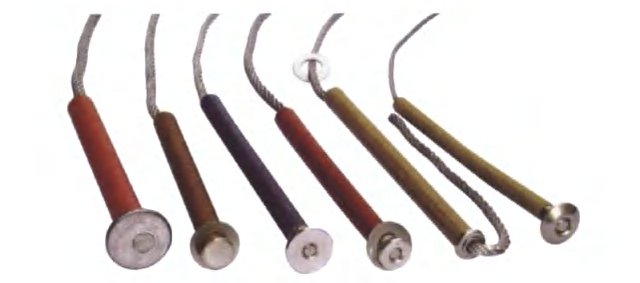

熔丝及配套件Fuse Links & Accessories

K / T 型熔丝 · 热熔式/热爆式脱离器 · 绝缘护罩

KB、KU、KS、K 型及 T 型熔丝按 IEC-281E 标准制造，有普通式、万能式、螺纹式三种类型，适用于 11–36kV 电压等级跌落式熔断器。同时提供热熔式、热爆式脱离器与电力设备绝缘护罩（变压器、避雷器、户外开关等电力设备的绝缘安全防护）。 KB, KU, KS, K and T type fuse links manufactured to IEC-281E, in ordinary, universal and threaded types, for 11–36kV drop-out cutouts. Also heat-melt / heat-explosion disconnectors and insulated protection covers for transformers, arresters and outdoor switchgear.

IEC-281E11–36 kVK / T 型绝缘护罩 Covers

产品中心Products

硅橡胶伞裙颜色说明：灰色系列主供出口Silicone Housing Colors: Grey Series for Export
